6″ WIDE ALUMINUM TRUSS
6″ Wide Aluminum Mini Truss is our smallest width truss but by no means is this beautiful aluminum trussing not capable of handling some heavy loads. A fast and easy expansion connection system with no protruding bolts looks virtually invisible and is extremely strong. 6” wide profile truss is made with 1” chords and 5/16” webbing. It is produced in 6” increments all the way up to 5’ long. Custom lengths and junctions can be fabricated quickly to create and design any element you could imagine. Our standard library of parts creates a massive range of designs but we’re never afraid to take on custom jobs.
Call us today and we’ll see you are well taken care of.
Specifications:
- Main Tube: 1”Ø (25.4mmØ) x 14 s.w.g. wall (2mmT)
- Lacing Spars: 5/16”Ø (8mmØ) x 16 s.w.g. wall (1.6mmT)
- Material: 6005 – T6 Aluminum

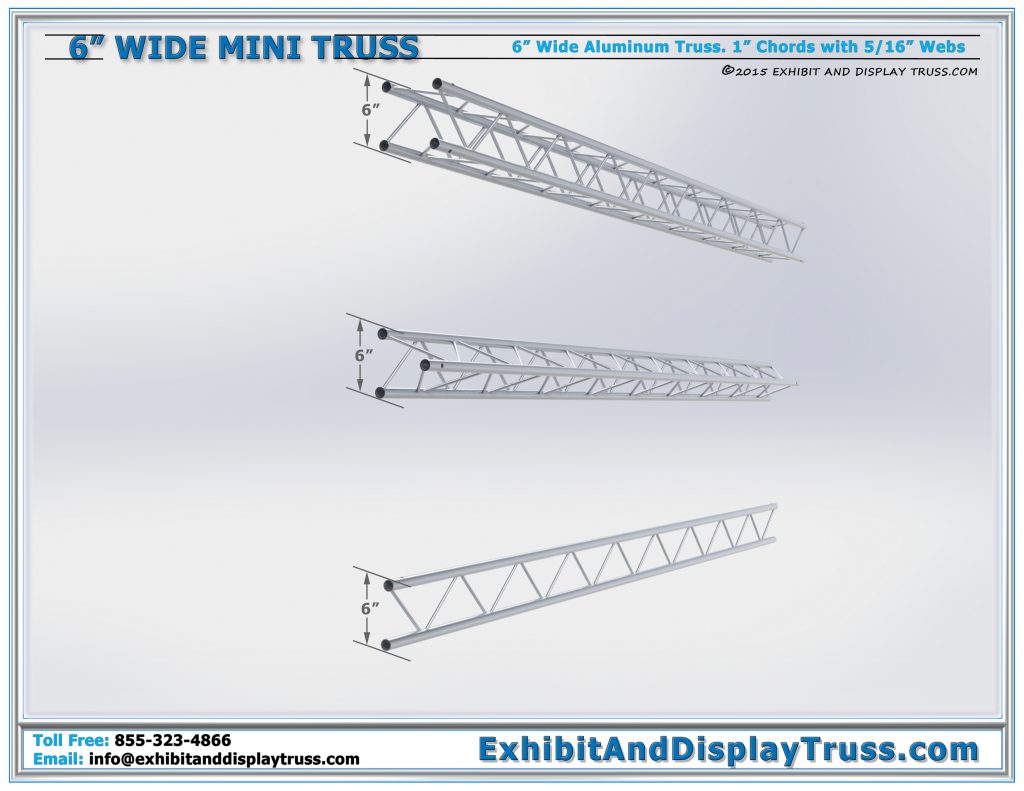

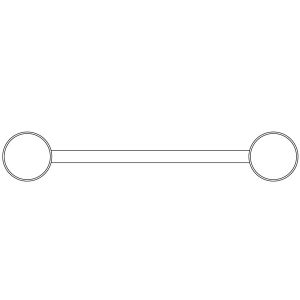

2 Chord / Ladder (Flat) Truss
3 Chord / Triangle Truss
4 Chord / Box (Square) Truss
6″ WIDE 2-CHORD / LADDER TRUSS
6″ Wide Aluminum truss is perfect for smaller trade show displays and truss systems. 6″ aluminum truss uses 1″Ø (outer tubes) and 5/16″Ø Webs (inner, smaller tubes). 6″ Wide Aluminum Truss uses a 1″ connection insert system.
Specifications
- Main Tube: 1”Ø (25.4mmØ) x 14 s.w.g. wall (2mmT)
- Lacing Spars: 5/16”Ø (8mmØ) x 16 s.w.g. wall (1.6mmT)
- Material: 6005 – T6 Aluminum

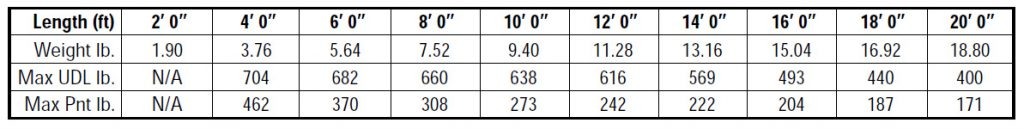

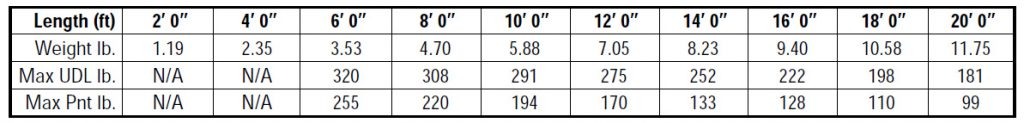

*The loading figures for Ladder are based on a load being applied evenly to both tubes. Individual loading of a single tube can reduce overall load bearing characteristics.
Non-standard lengths can be produced. Any special length less than 1 foot is priced at 1 foot. All lengths include spigots.
UDL = Uniformly Distributed Load. Pnt = Point Load.

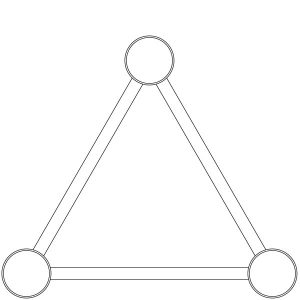

6″ WIDE 3-CHORD / TRIANGLE TRUSS
6″ Wide Aluminum truss is perfect for smaller trade show displays and truss systems. 6″ aluminum truss uses 1″Ø (outer tubes) and 5/16″Ø Webs (inner, smaller tubes). 6″ Wide Aluminum Truss uses a 1″ connection insert system.
Specifications
- Main Tube: 1”Ø (25.4mmØ) x 14 s.w.g. wall (2mmT)
- Lacing Spars: 5/16”Ø (8mmØ) x 16 s.w.g. wall (1.6mmT)
- Material: 6005 – T6 Aluminum
*The loading figures for Triangle are based on a load being applied evenly to both lower tubes. Individual loading of a single tube can reduce overall load bearing characteristics.
Non-standard lengths can be produced. Any special length less than 1 foot is priced at 1 foot. All lengths include spigots.
UDL = Uniformly Distributed Load. Pnt = Point Load.

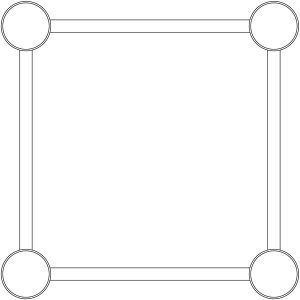

6″ WIDE 4-CHORD / (SQUARE) BOX TRUSS
6″ Wide Aluminum truss is perfect for smaller trade show displays and truss systems. 6″ aluminum truss uses 1″Ø (outer tubes) and 5/16″Ø Webs (inner, smaller tubes). 6″ Wide Aluminum Truss uses a 1″ connection insert system.
Specifications
- Main Tube: 1”Ø (25.4mmØ) x 14 s.w.g. wall (2mmT)
- Lacing Spars: 5/16”Ø (8mmØ) x 16 s.w.g. wall (1.6mmT)
- Material: 6005 – T6 Aluminum

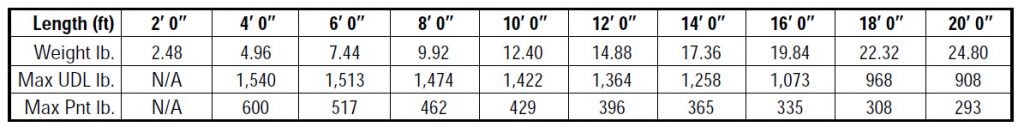

*The loading figures for Box are based on a load being applied evenly to both lower tubes. Individual loading of a single tube can reduce overall load bearing characteristics.
Non-standard lengths can be produced. Any special length less than 1 foot is priced at 1 foot. All lengths include spigots.
UDL = Uniformly Distributed Load. Pnt = Point Load.
CONNECTION SYSTEM
1″ tube connection insert for aluminum truss. This expansion style 1″ tube connection insert system fits all 1″ aluminum tube (6 inch wide and 9 Inch wide aluminum truss parts use 1″ tube, or chord, diameter). All insert spigots are made with 6061-T6 (SS) Aluminum. The 1″ tube connection insert system is very easy to assemble with 4mm Allen key and provides strength and durability. The 1″ tube insert system provides a completely unobtrusive connection method, with no protruding bolts. This results in a clean and aesthetically pleasing exhibit display booth. Trade Show Truss booths using 6″ Wide aluminum truss are perfect for smaller booth sizes and for a portable retail displays. Please note that all of our parts come standard with all connection inserts and hardware.

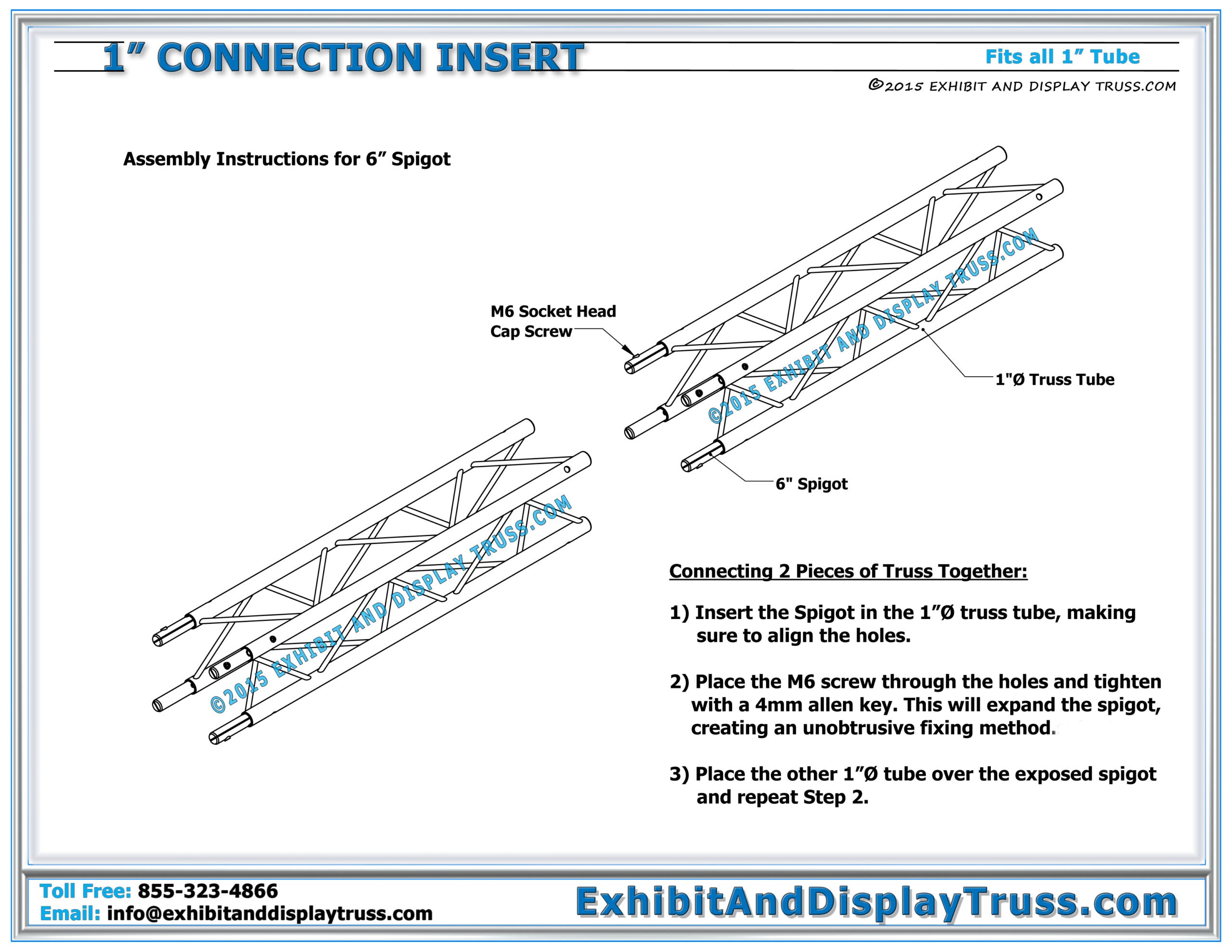

Assembly Instructions

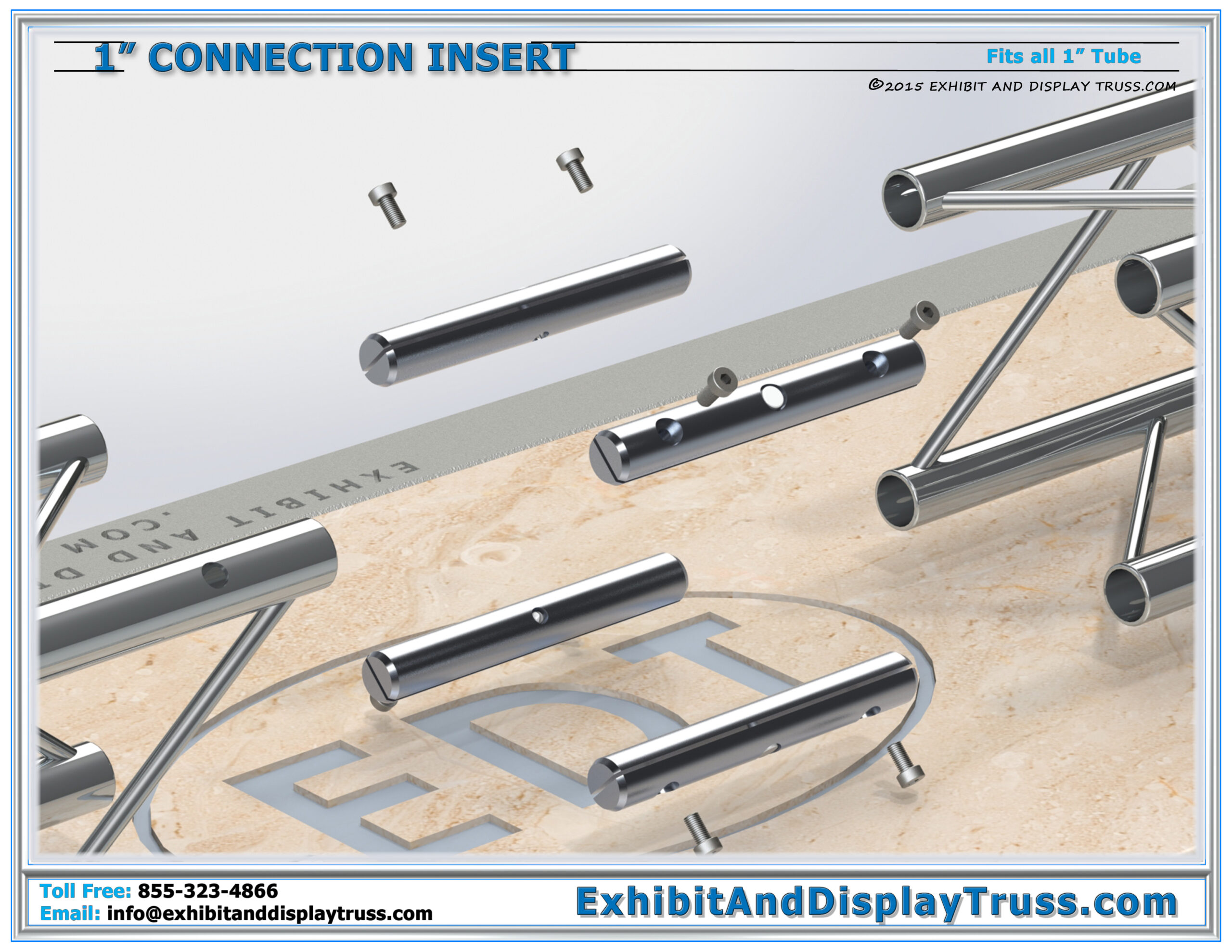

Exploded View

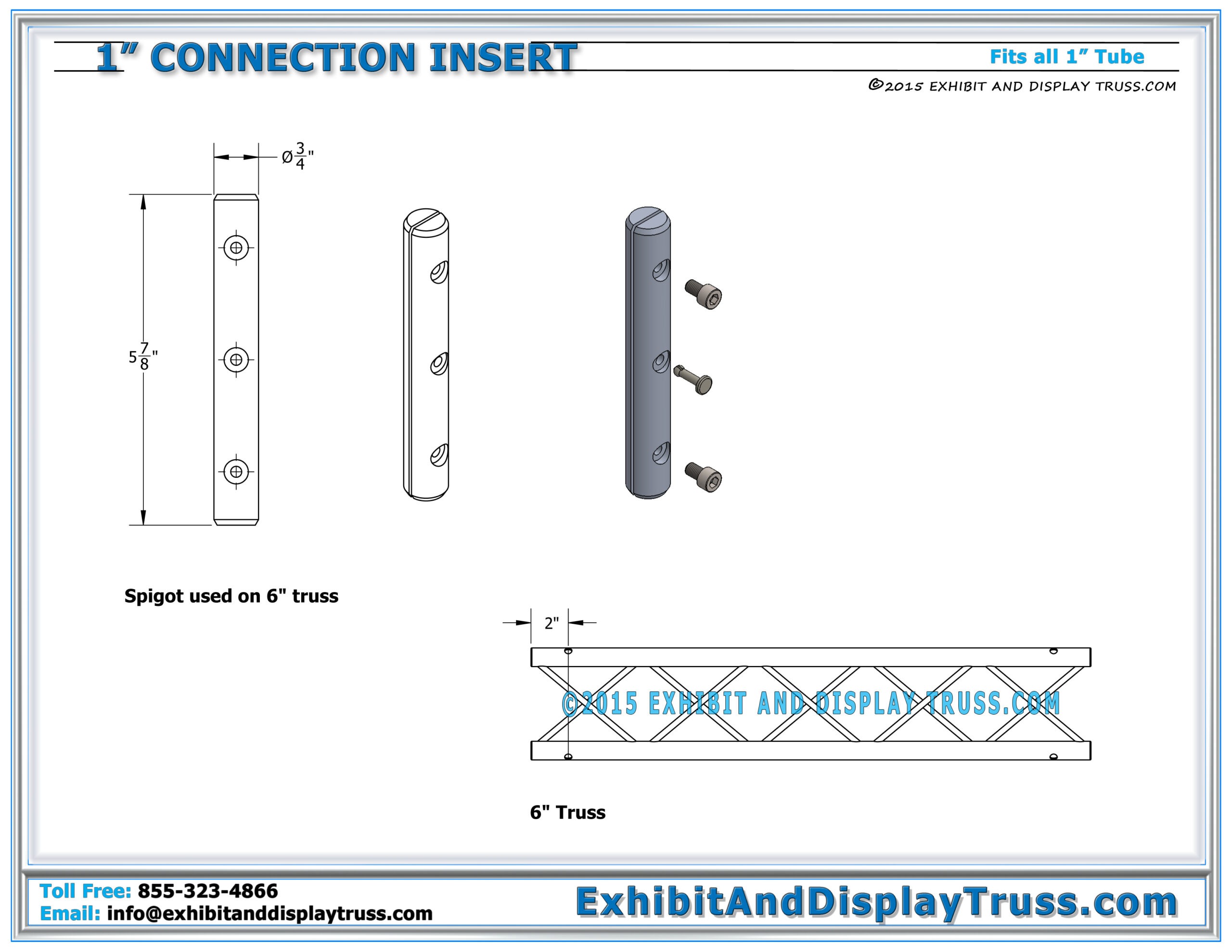

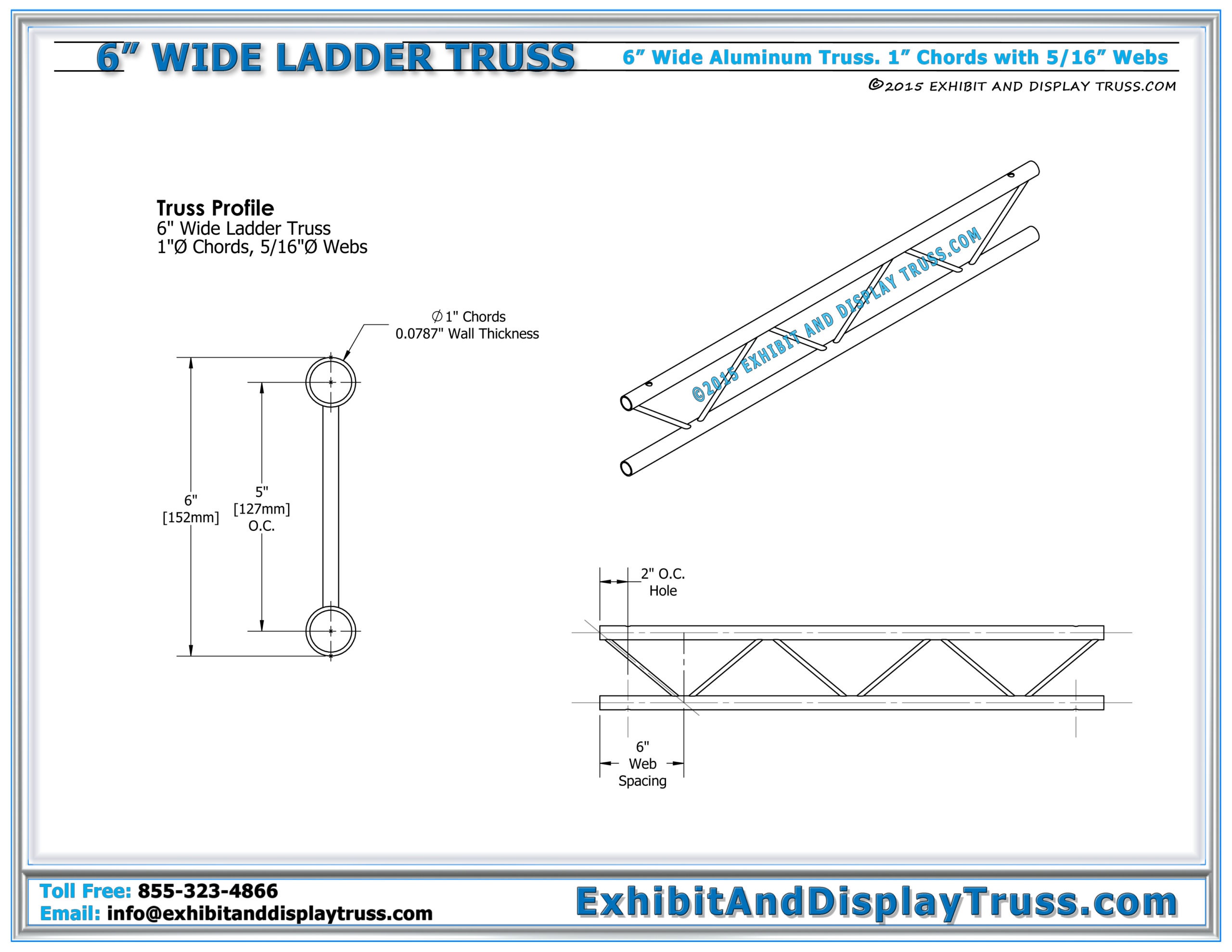

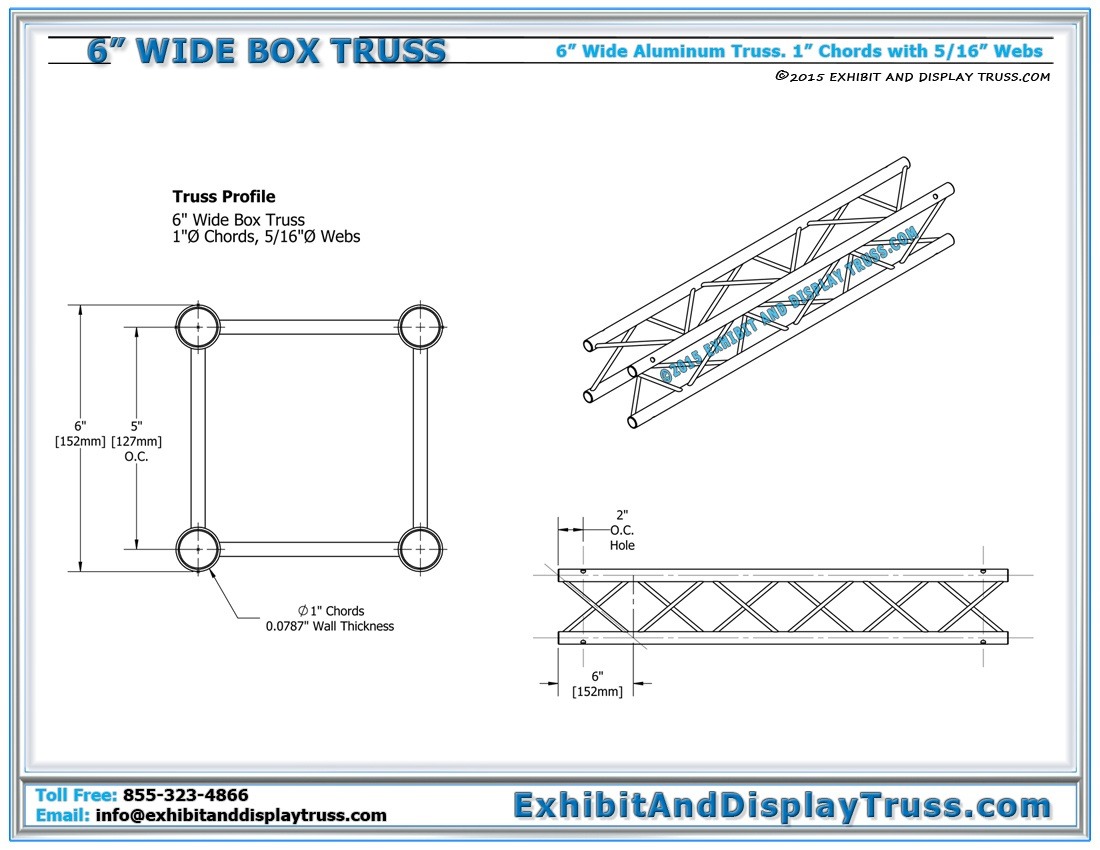

Dimensions
