Apex Orientations

Triangle truss is a cost effective way to build a truss system that gives a lot of strength and stability while maintaining a unique and stylish look. Not to mention the compact way it nests into itself when packed up for transport.  However, apex direction and orientation can be confusing to those who haven’t worked with triangle truss before.  The proper alignment and assembly must be taken into account when building your triangle truss structure. Here are some simple diagrams to help figure out the right configuration for you and for simple set ups to avoid any confusion.

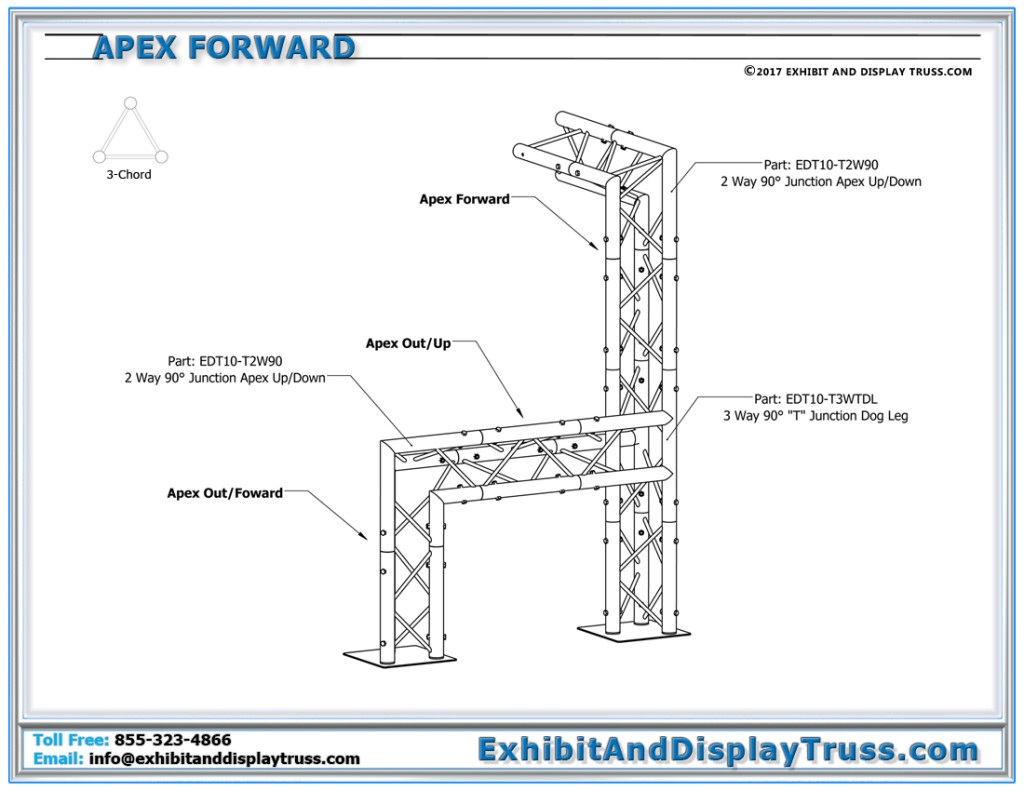

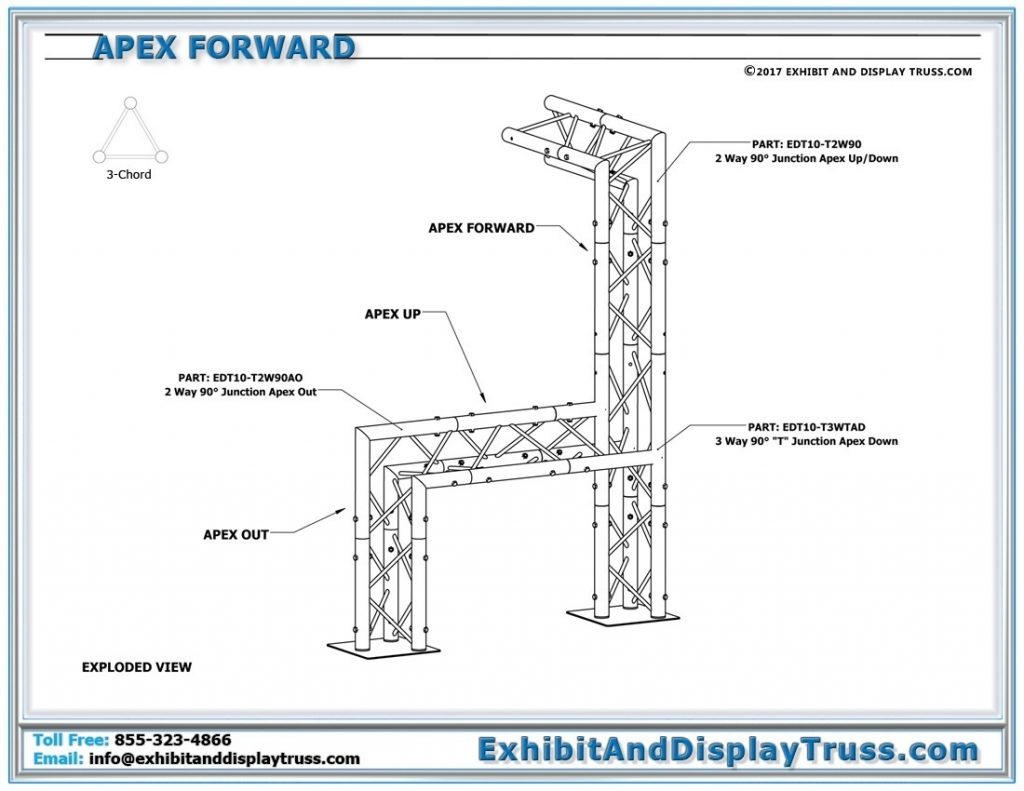

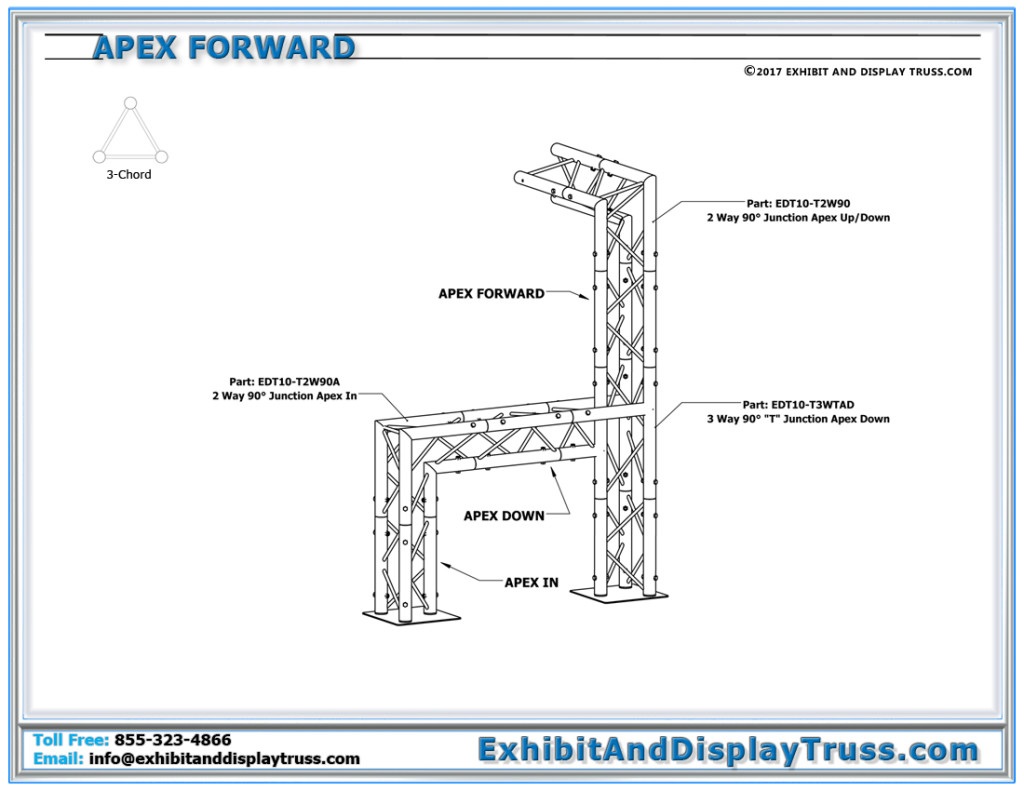

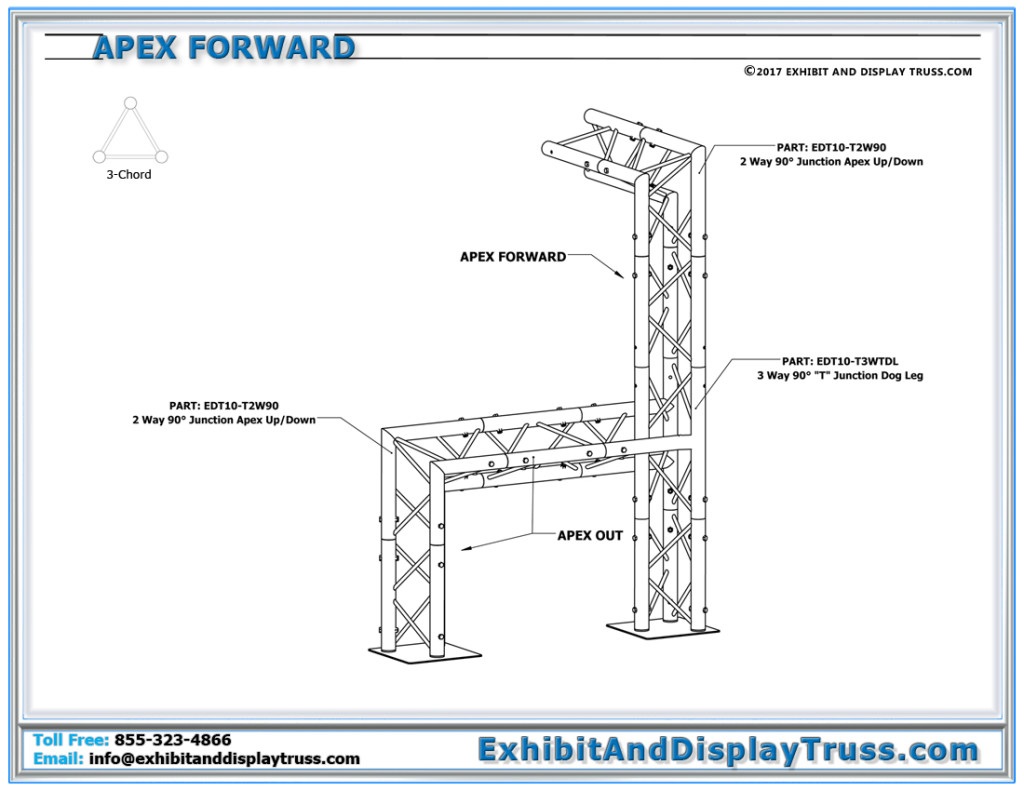

APEX FORWARD

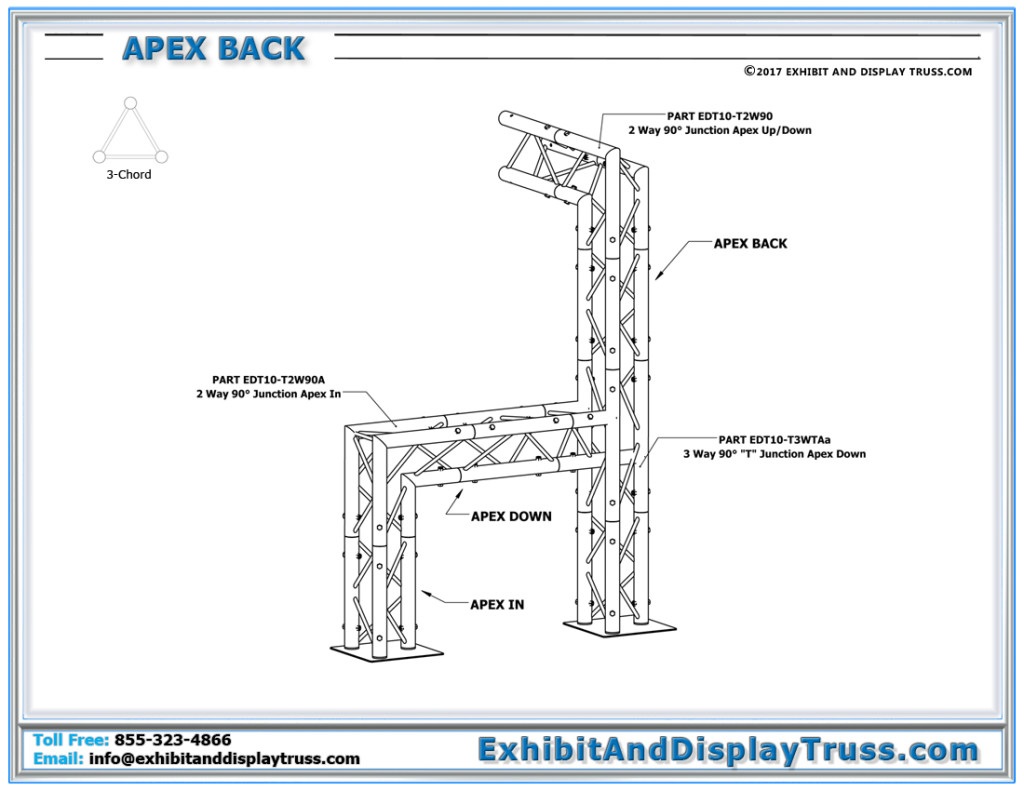

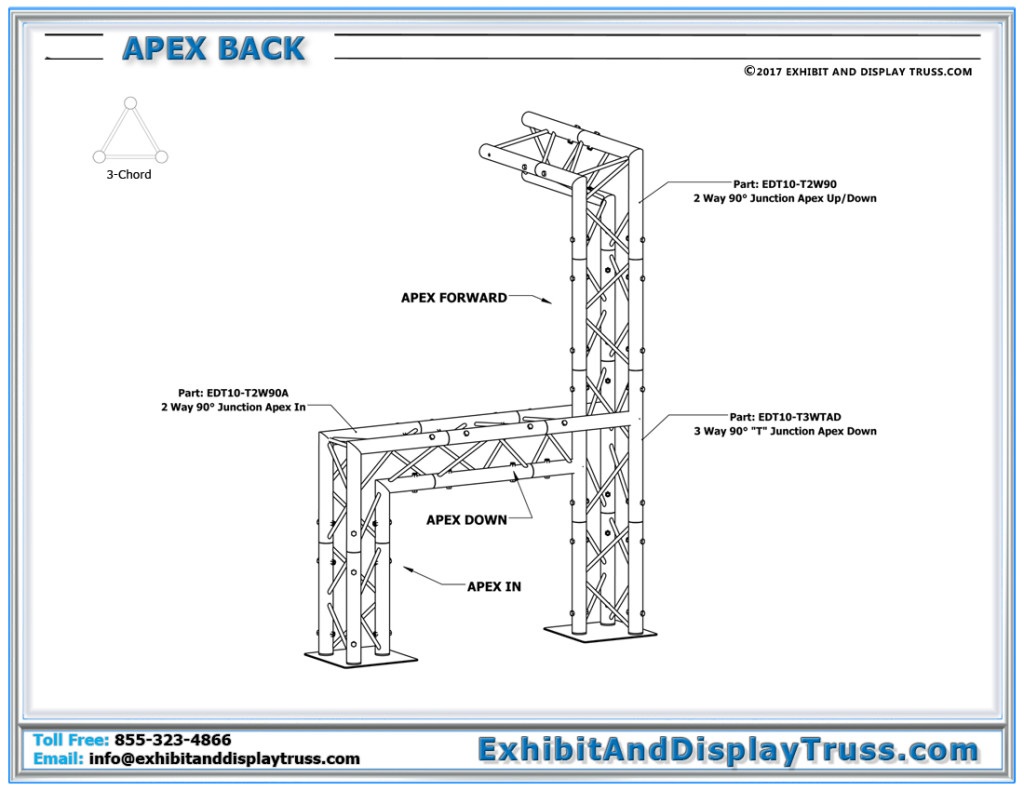

APEX BACK

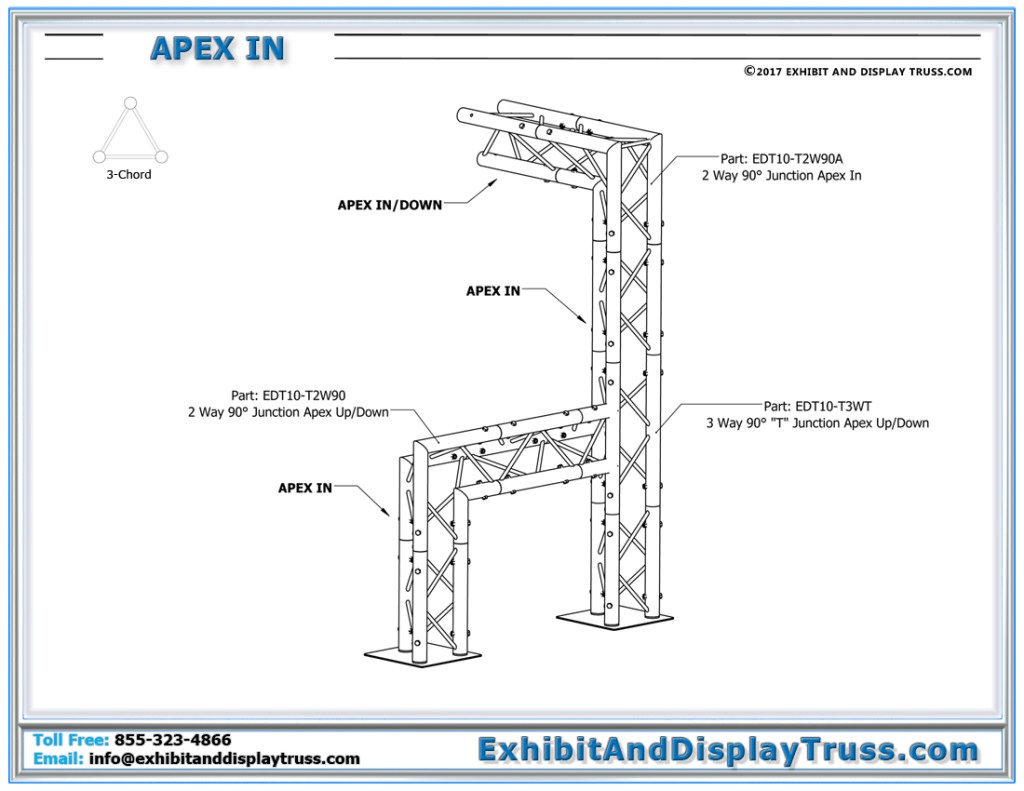

APEX IN

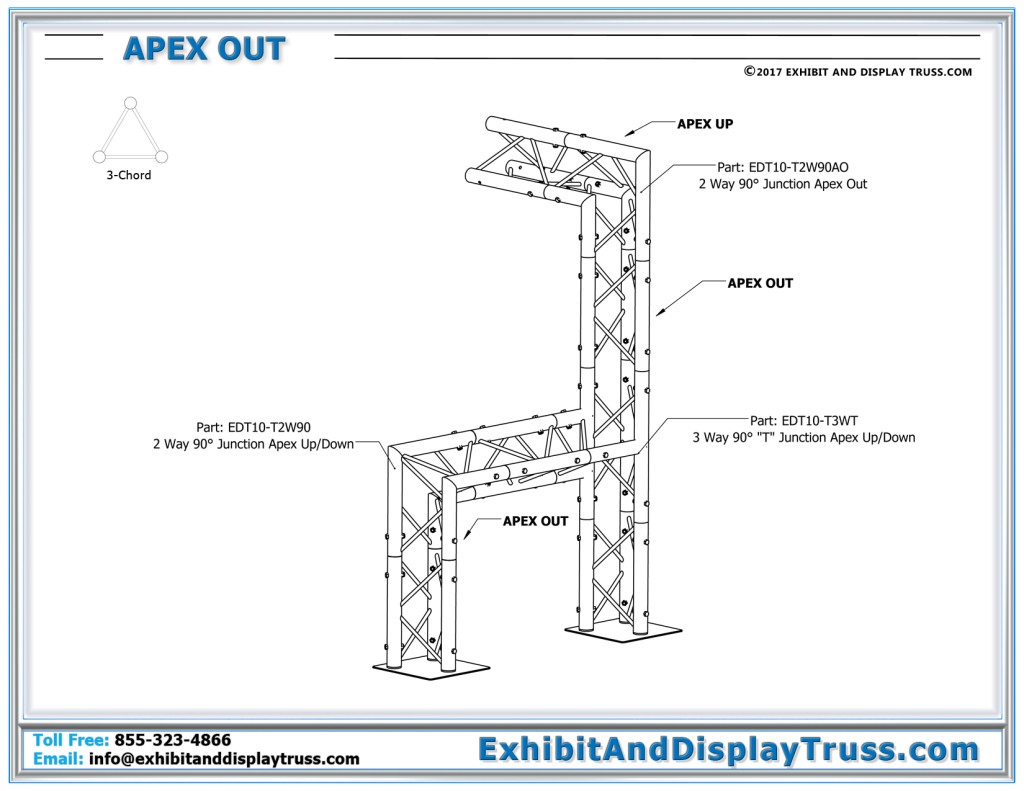

APEX OUT
