Finish Line Structure: FL-7

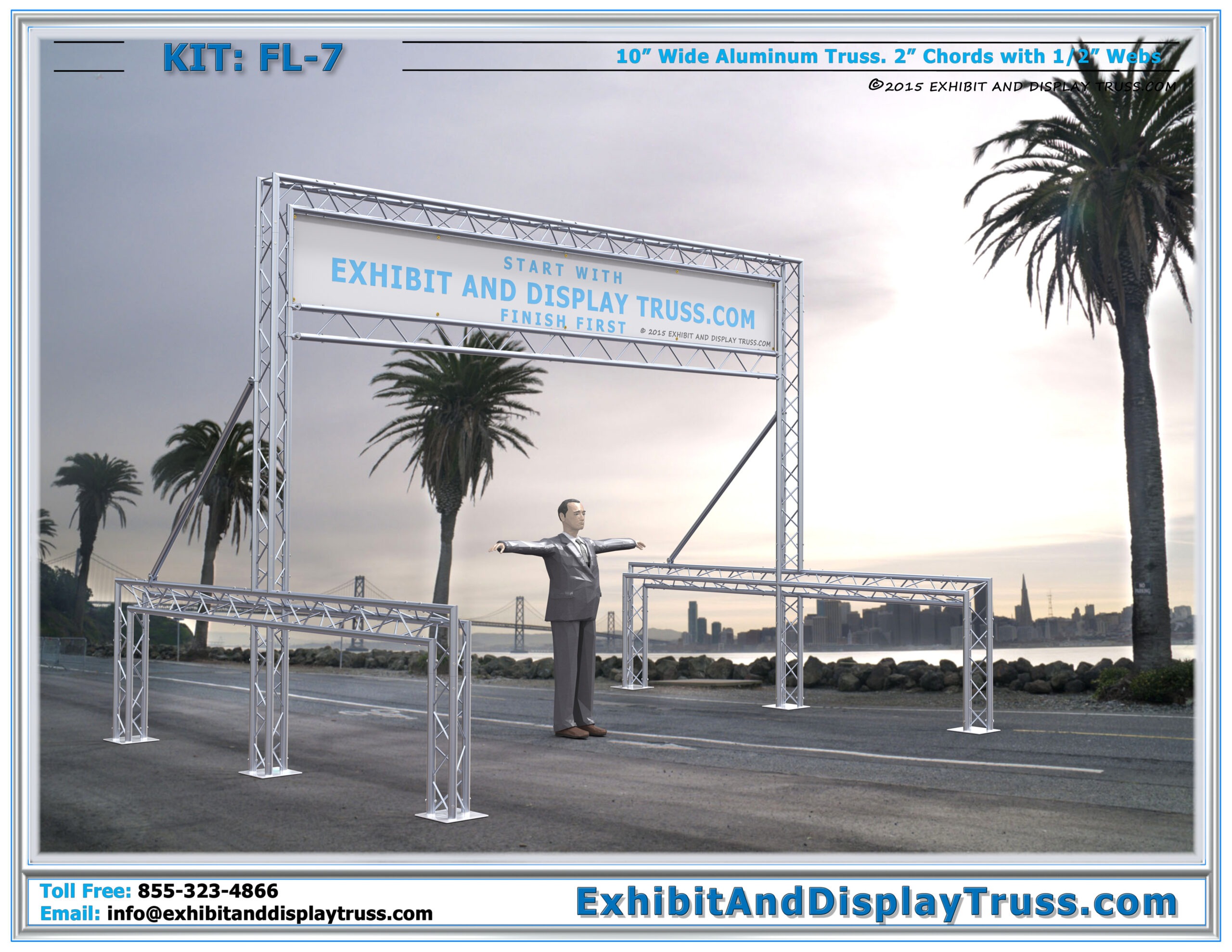

Aluminum triangle truss can nest together when packing, making it a cost effective choice for transport to race event sites. The FL-7 is perfect for cycling events, track races, and corporate events. The FL-7 kit has a large gantry footprint, which provides extra stability and extra banner support. The FL-7 comes with a length of ladder truss on extender hooks for bottom support on your sponsorship banner. This can be adjusted to any height and adds another place to fasten banners to, attach timing clocks, lighting support, and other truss products. Quick clips can make setup and take down even faster without any tools at the racing site. If you require a specific dimension, don’t hesitate to email us to reconfigure or create custom lengths!
Click Here to see how to Maximize your Sponsorship Banner Display on Finish Line Banner Structures.

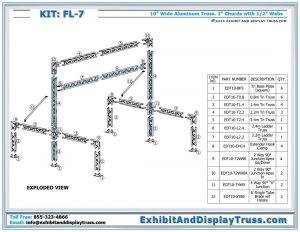

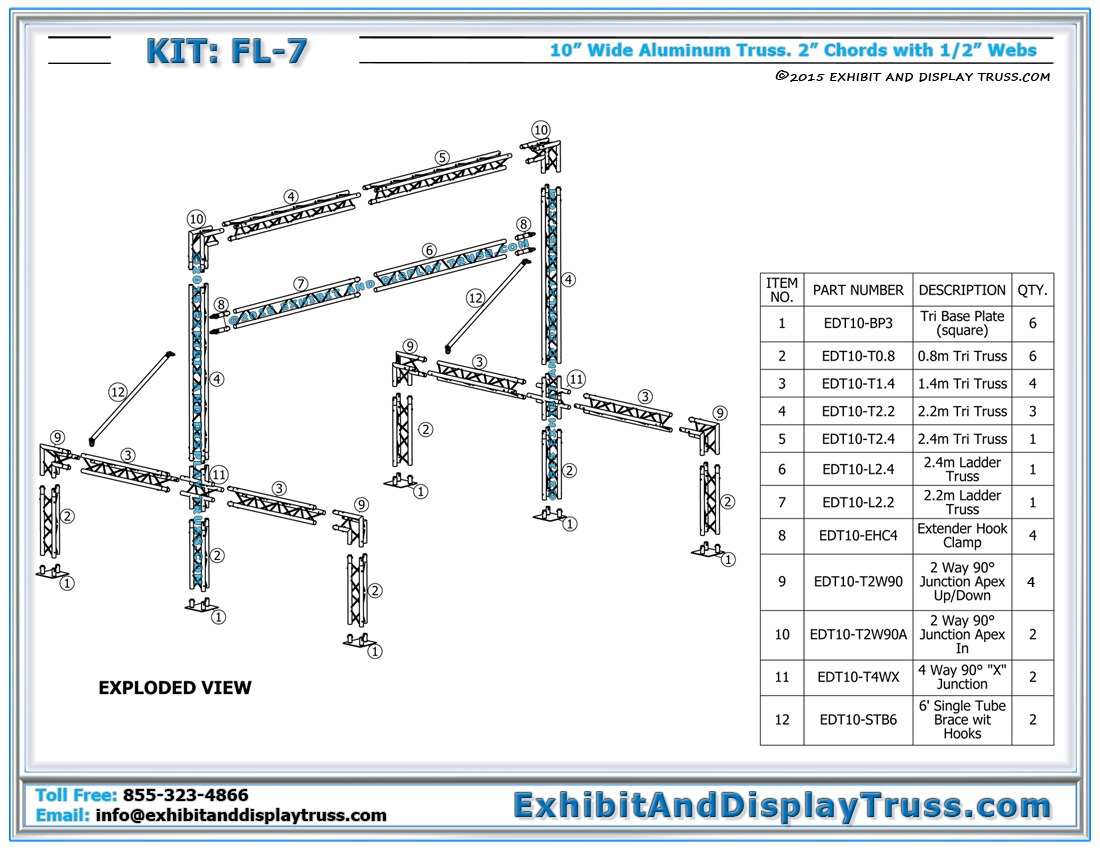

Parts List
- 6 x EDT10-BP3 (Tri Base Plate)
- 6 x EDT10-T0.8 (0.8m Tri Truss)
- 4 x EDT10-T1.4 (1.4m Tri Truss)
- 3 x EDT10-T2.2 (2.2m Tri Truss)
- 1 x EDT10-T2.4 (2.4m Tri Truss)
- 1 x EDT10-L2.2 (2.2m Ladder Truss)
- 1 x EDT10-L2.4 (2.4m Ladder Truss)
- 4 x EDT10-T2W90 (2 Way 90° Junction Apex Up/Down)
- 2 x EDT10-T2W90A (2 Way 90° Junction Apex In)
- 2 x EDT10-T4WX (4 Way 90° “X” Junction Apex Up/Down)
- 2 x EDT2-STB6
- 4 x EDT10-EHC4 (Extender Hook Clamp)
- Approximate Kit Weight = 420 lbs
Optional Accessories
Similar Designs
- FL-4 Finish Line and Starting Line Kit / Truss Finish Line Structure With Banner Support
- FL-6 Finish Line and Starting Line Kit / Cost-Effective Aluminum Truss Archway
- FL-5 Finish Line and Starting Line Kit / Small and Portable Arch Trussing Finish Line Kit
- FL-3 Finish Line and Starting Line Kit / Durable 5k and 10k Portable Finish Line Kit
The Best Finish Lines and Start Lines for Your Race Lines
All of our Aluminum Truss Finish Line Kits and Starting Line kits are lightweight and durable, a convenient product to transport to any race event site. Our durable finish line structures are perfect for hanging finish line accessories and banners, an advantage over inflatable finish lines. All of our truss structures are made from modular aluminum truss components which allows you to continuously reconfigure, modify, and expand your truss system if your needs change in the future. All of our truss structures can also be made from box, triangular, and ladder versions.
Do no hesitate to Contact Us if you have any questions!
